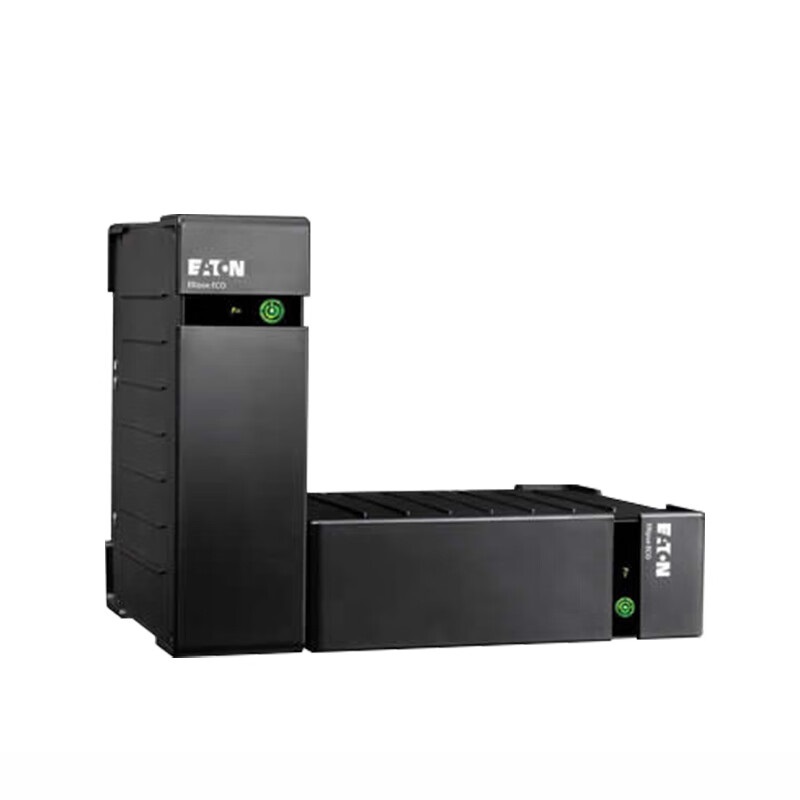

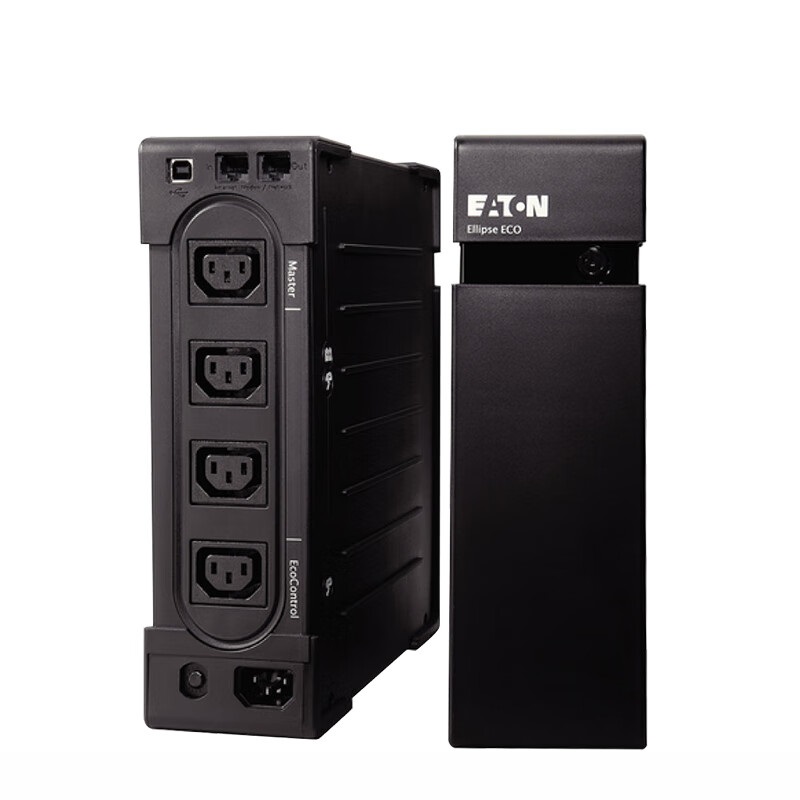

EATON Ellipse ECO UPS(500-1600VA)
The Eaton Ellipse ECO UPS is a compact power protection device with built-in high-performance surge protection devices (compliant with IEC 61643-1 standard). With efficient electrical design and EcoControl functionality, Eaton Ellipse ECO can save up to 25% energy compared to the previous generation. Continue to visit and learn more about uninterrupted power supply UPS products.
Features:
- EcoControl function
- High performance surge protection
- Flat panel design
- Save 25% energy compared to the previous generation
Visits: 5

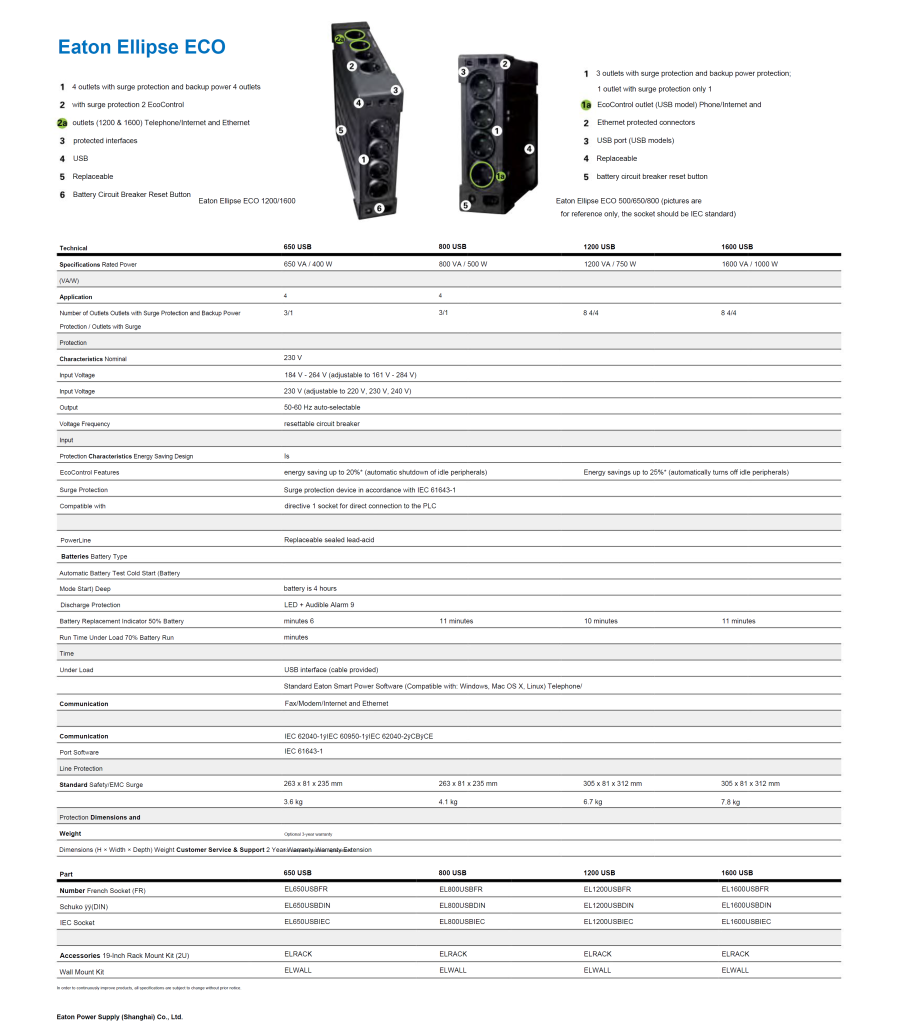

EATON ELLIPSE ECO UPS - 技术指标 |
|||
|---|---|---|---|
| 产品快照 | |||
| 功率等级 | 500-1600VA | ||
| 额定电压 | 230V | ||
| 频率 | 50/60Hz自适应 | ||
| 配置 | 塔式 | ||
| UPS型号 | |||
| 零件号码 | 额定容量(伏安 / 瓦特) | 输入连接 | 输出连接 |
| Eaton Ellipse ECO IEC | |||
| 9400-43126-00P | 500 / 300 | C14 | (3) C13, (1) C13 surge only |
| 9400-43129-00P | 650 / 400 | C14 | (3) C13, (1) C13 surge only |
| 9400-43132-00P | 650 / 400 | C14 | (3) C13, (1) C13 surge only |
| 9400-5336-00P | 800 / 500 | C14 | (3) C13, (1) C13 surge only |
| 9400-6335-00P | 1200 / 750 | C14 | (4) C13, (4) C13 surge only |
| 9400-8309-00P | 1600 / 1000 | C14 | (4) C13, (4) C13 surge only |
