Distribution/Power Distribution

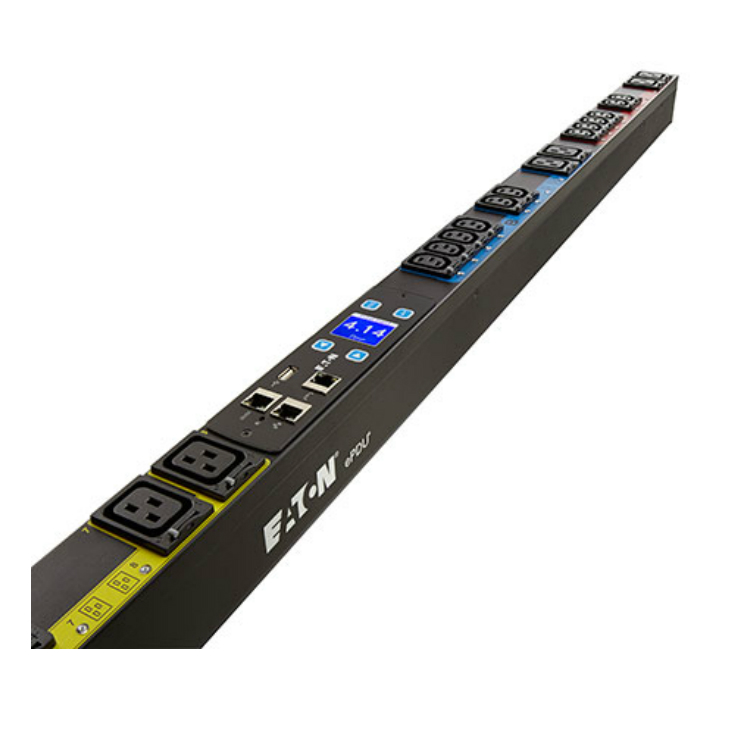

Eaton G3 monitoring type ePDU

The Eaton G3 monitoring type ePDU does not include switches and can perform branch level and phase level monitoring to effectively achieve load balancing. These models have IEC Class 1 (1%) billing accuracy, advanced hot swappable meters that display V, W, A, and kWh using LCD pixel displays, and can connect 8 ePDU via daisy chain, sharing network connections and IP addresses

Features:

The Eaton G3 monitoring ePDU provides network connectivity and advanced LCD display, making configuration simpler. G3 ePDU adopts hot swappable network components, which can be upgraded or replaced without power outage.
IEC+/-1% billing level accuracy: highly accurate measurement of energy consumption (kWh), voltage (V), power (W), and current (A)
Input and phase monitoring, circuit breaker current monitoring

Get Pricing/Info

Visits: 3

Eaton Management EPDU - Technical Indicators
产品快照
频率	50Hz
Power Range	2.3kW - 22kW
额定电压	200 - 400V
零件号码	型号	Function	输入连接	输出连接
管理型 G3
Usually in stock
EMAB03	EMAB03	MA	C14	(16) C13
EMAB04	EMAB04	MA	309-16A	(20) C13, (4) C19
EMAB05	EMAB05	MA	309-32A	(20) C13, (4) C19
EMAB20	EMAB20	MA	309-16A 3Ph	(21) C13, (3) C19
EMAB22	EMAB22	MA	C20	(20) C13, (4) C19
EMAB33	EMAB33	MA	309-32A 3Ph	(18) C13, (6) C19
EMA115-10	EMA115-10	MA	L6-20P, C20	(21) C13 Outlet grip, (3) C19 Outlet grip
EMA106-10	EMA106-10	MA	L6-20P, C20	(7) C13 Outlet grip, (1) C19 Outlet grip
9001-22274XE1	EMA07G-E	MA	C20	(8) C13 Outlet grip
9001-22151XE1	EMA03G-E	MA	C20	(21) C13 Outlet grip, (3) C19 Outlet grip
9001-22152XE1	EMA04G-E	MA	309-332P6W	(20) C13 Outlet grip, (4) C19 Outlet grip
