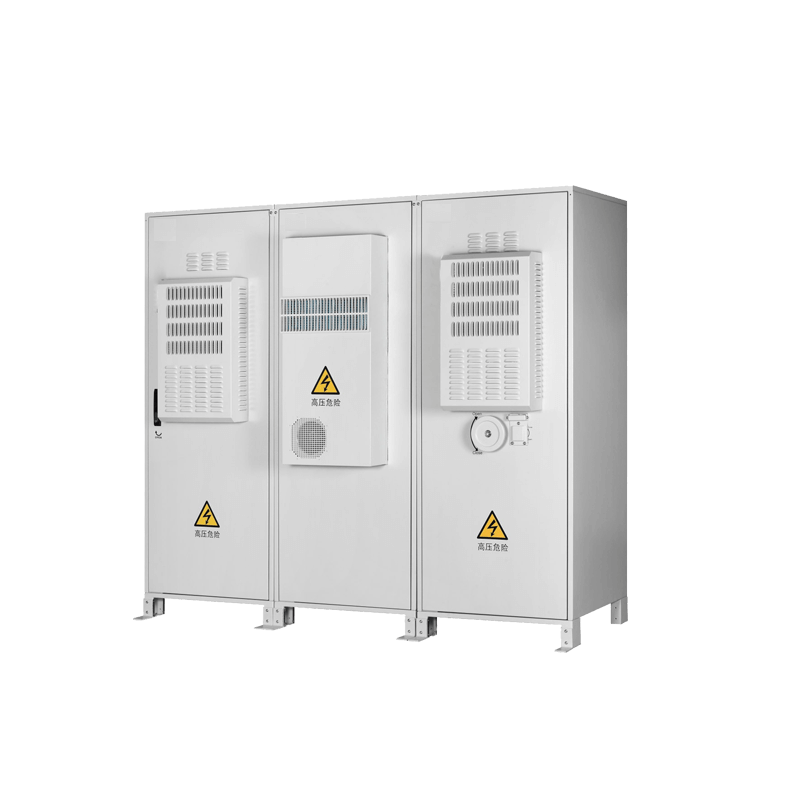

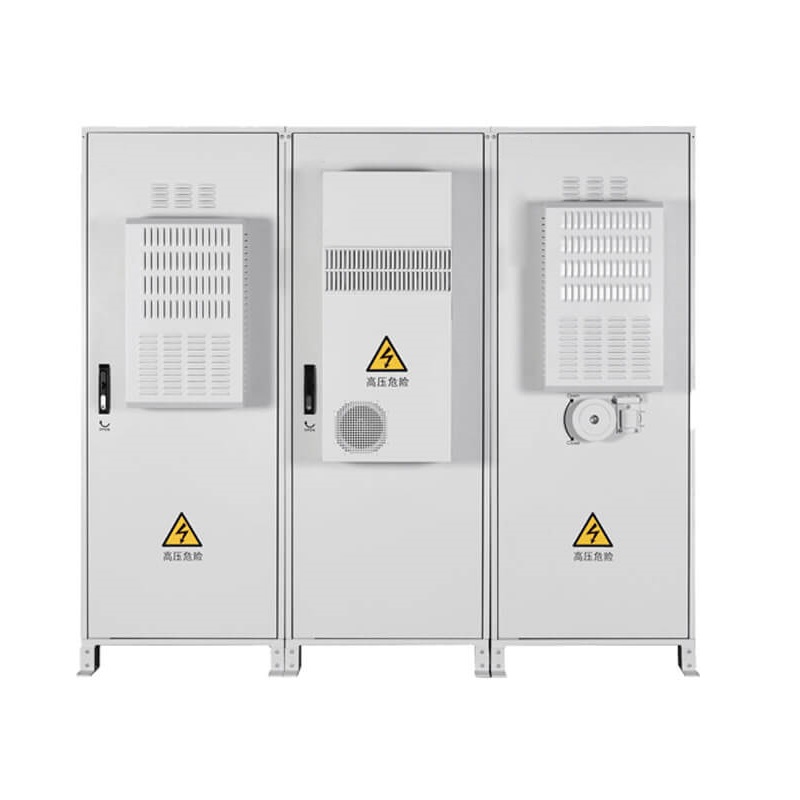

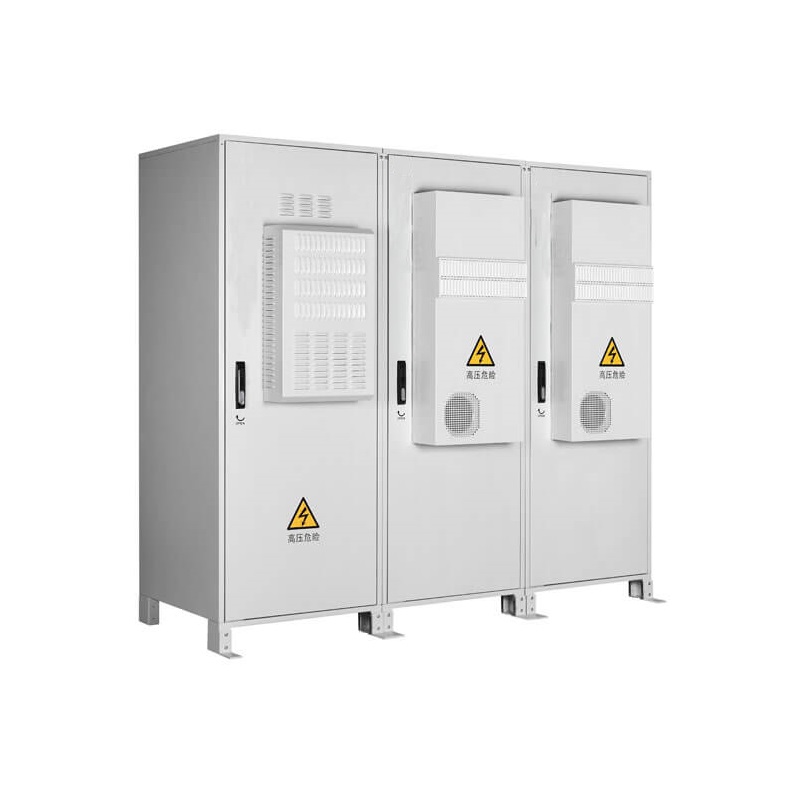

The E series outdoor base station energy system includes various cabinets such as power cabinets, equipment cabinets, and battery cabinets. Each cabinet is independently designed and integrated, and can form various systems such as single cabinet, double cabinet, and multi cabinet, with flexible configuration and fast deployment.
Visits: 2
Characteristic
high reliability
High protection level IP55/IP45/IP44, suitable for harsh outdoor environments.
Wide voltage input range of 80-300Vac, strong adaptability to power grid and oil engine.
Ultra wide working temperature range -40~65 ℃ (with a reduction of rating above 45 ℃), strong environmental adaptability, suitable for various areas.
Comprehensive lightning protection design on the AC side, DC side, and signal side to enhance the system's lightning protection capability.
Equipped with walk-in function, it avoids impact on the front transformer and oil engine during startup.
Efficient and energy-saving
Efficient module efficiency>96%, saving users electricity expenses.
Equipped with sleep mode and high-efficiency universal module mixed insertion energy-saving technology to improve operational efficiency.
Equipped with intelligent speed regulation function for fans, it reduces system losses and extends the service life of fans.
Intelligence
It has communication interfaces such as RS232/RS485, network port, intelligent dry contact, etc., making networking flexible.
The comprehensive battery management function effectively extends the service life of the battery.
Intelligent temperature control design for on-demand heat dissipation.
Flexible configuration
Multiple power supply capacities to meet various network construction requirements.
Multiple door mounted heat exchange systems such as heat exchange and air conditioning, matching the heat dissipation needs of different areas and equipment.
Modular design, covering various application scenarios such as single cabinet, double cabinet, and triple cabinet.
Security and anti-theft measures
Embedded door and hinge design, with no exposed screws on the outside of the cabinet to prevent prying.
Adopting a multi-point lock design from heaven and earth, ensuring that the cabinet door is completely locked and subjected to uniform force.
Adopting outdoor dedicated anti-theft locks and reinforced design with cabinet door frames to enhance anti prying ability.
The battery compartment is designed with dedicated anti-theft components to reduce the risk of battery theft, and multiple intrusion alarm functions are available.
Rapid deployment
Modular design, supporting on-site disassembly and assembly, convenient for handling and installation.
Full frontal maintenance design, small footprint, easy to address.
Low noise design, suitable for various scene constructions.
Flexible installation, suitable for rooftop/ground installation.
