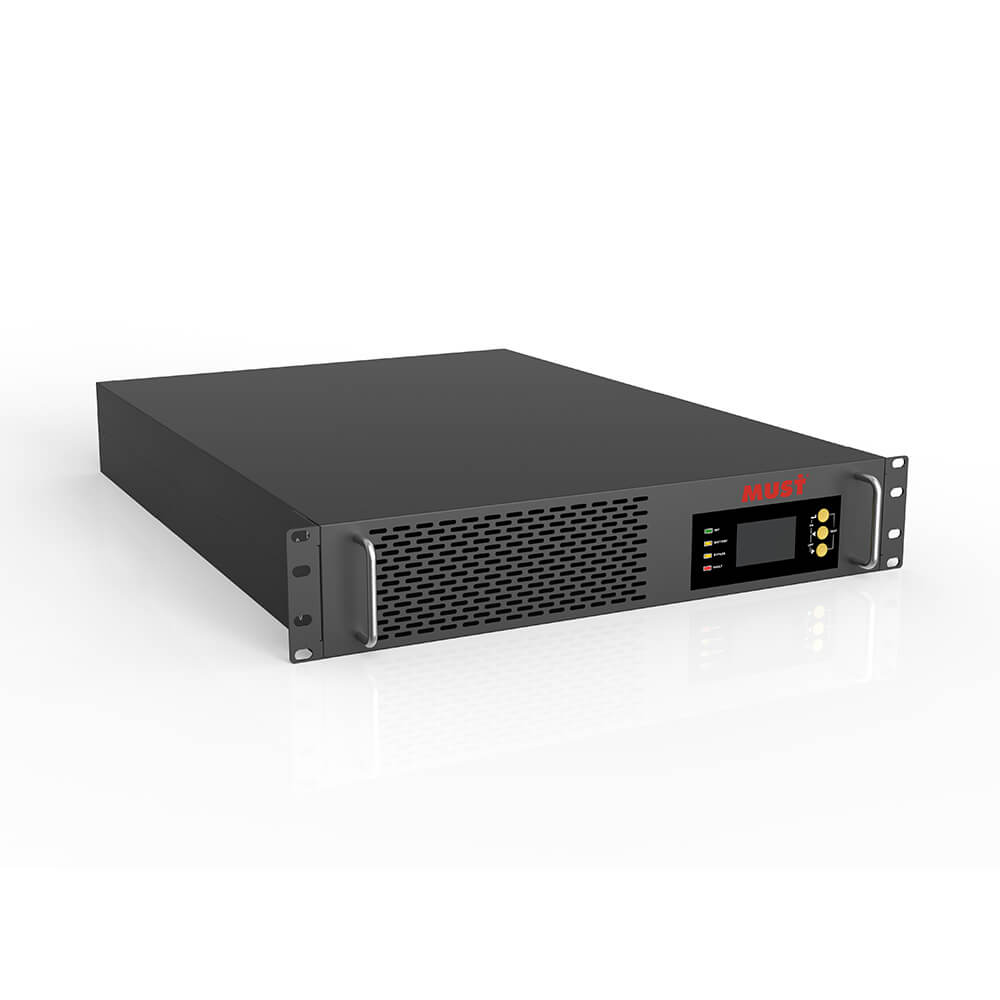

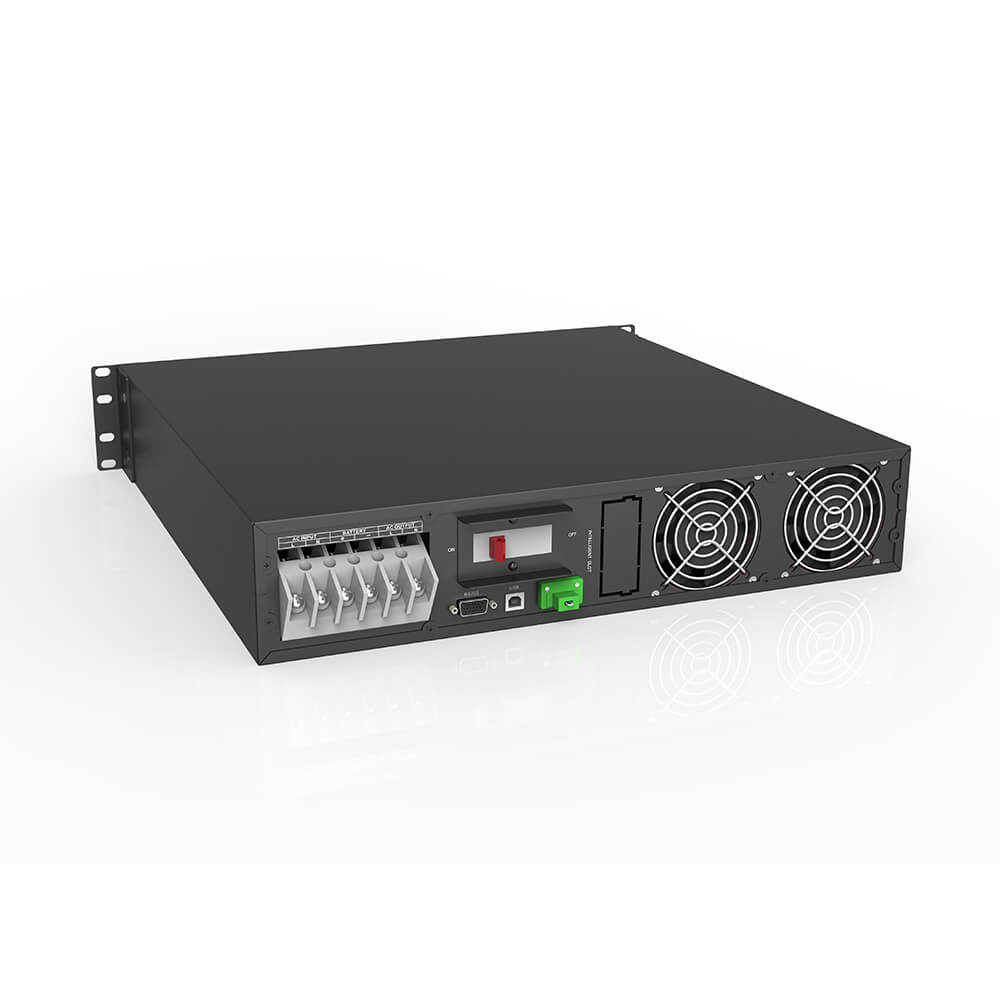

Single phase - Online UPS

• With double conversion online design, zero output transfer time. Single phase input and output voltage.
• Adopt DSP digital control, excellent performance indicators, more steady and reliable.
• Adopt active power factor correction technology (PFC), the input power factor is 1, can reduced the pollution to the grid, To energy saving and reducing system investment.
• Ultra-wide input voltage range.
• Input frequency range 40~70Hz, support various fuel generators.
• With LCD+LED real-time display, users can intuitively understand the UPS operating status.
• With self- detection function, can detect hidden faults of UPS in time.
• With AC input over voltage, low voltage protection, output overload protection, short circuit protection, temperature protection, battery low voltage warning protection and battery overcharge protection.
• The efficiency of the whole UPS is as high as 95.5%, which reduces the power loss of it and saves the user’s use cost.
• When there is no mains power, you can directly use the battery to cold start.
• With input neutral and live line detection function, avoid the reverse connection of UPS utility input.
• When utility cut-off, the UPS discharge battery in the battery mode; when the city power is recovery ,UPS turn on automatically,and charge battery at the same time, as unattended function.
• Standard RS232 communication outlet ,connect UPS and computer to realize multifunctional and multi-purpose monitoring and management operations, available SNMP card (optional) to UPS remote monitoring function.

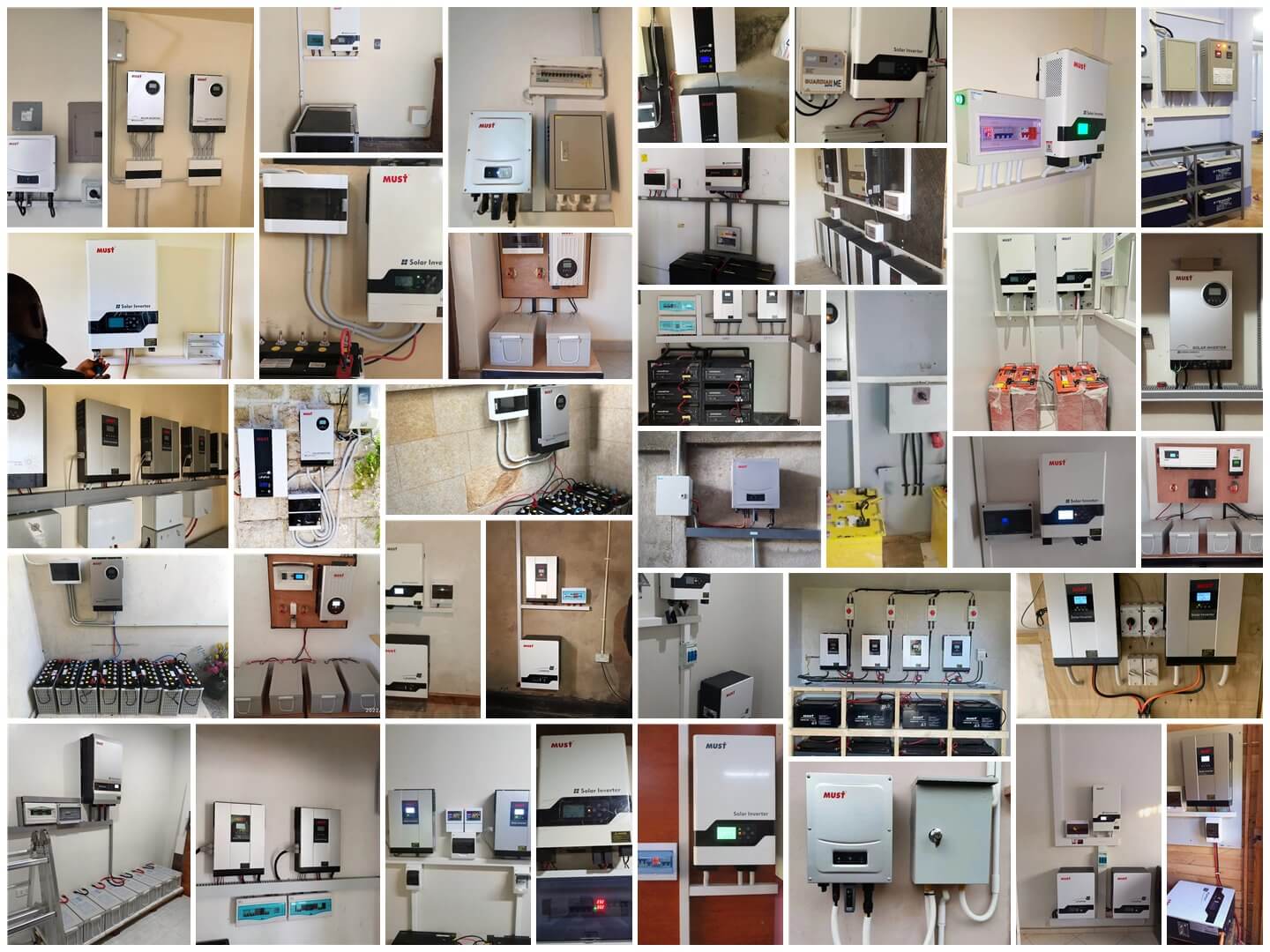

↓↓↓Installation Portfolio————
