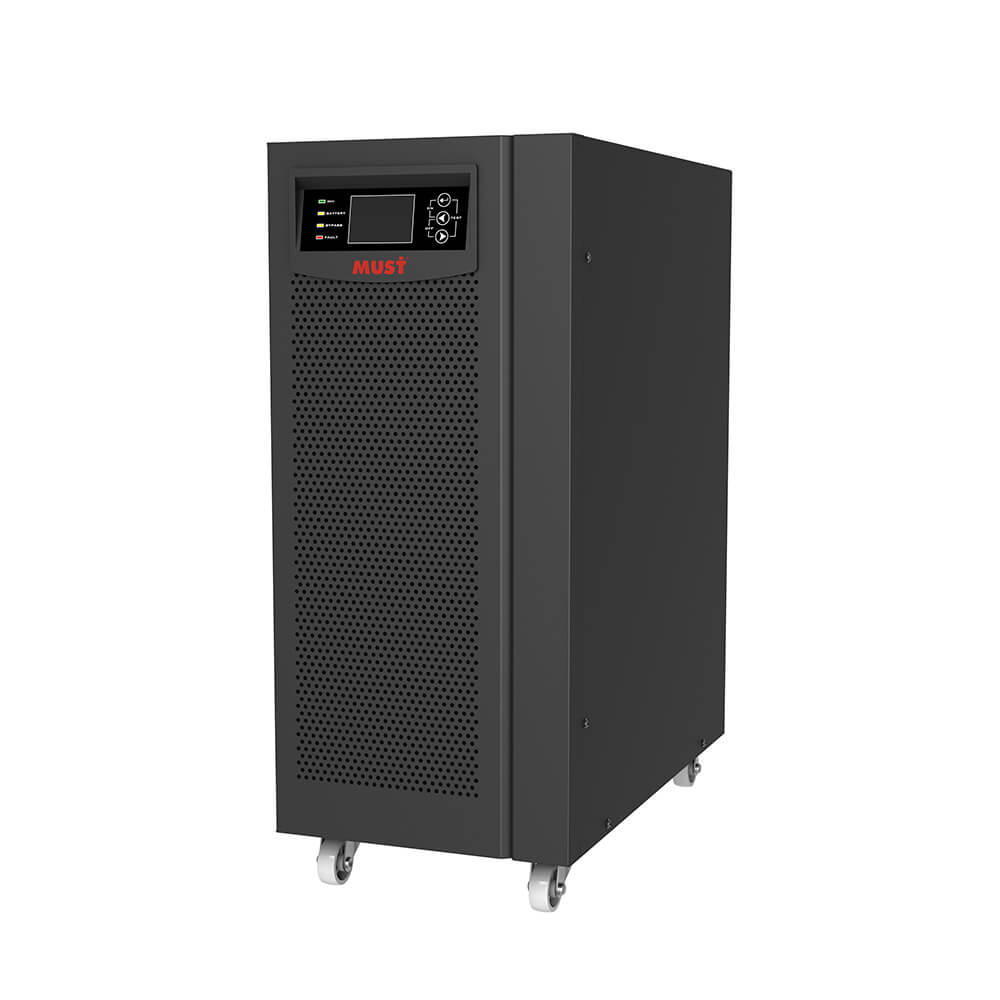

Single phase - Online UPS

• With double conversion online design, zero output transfer time.
• Adopt DSP digital control, excellent performance indicators, more steady and reliable.
• Ultra-wide input voltage range , input voltages available 110V instead of turn to battery power.
• With LCD+LED real-time display, UPS operating available for detection.
• With self- detection function, can detect hidden faults of UPS.
• Cold start by battery without grid Input.
• Input frequency range 40~70Hz, support various fuel generators.
• With AC input over voltage, low voltage protection, output overload protection, short circuit protection, temperature protection, battery low voltage warning protectionand battery overcharge protection.
• Output power factor 1.0 for your option . max. efficiency reach 95% , reduce loss of UPS.
• With input neutral and live line detection function, avoid the reverse connection of UPS utility input.
• When utility cut-off, the UPS discharge battery in the battery mode; when the city power is recovery ,UPS turn on automatically,and charge battery at the same time, asunattended function.
• Standard RS232 communication outlet ,connect UPS and computer to realize multifunctional and multi-purpose monitoring and management operations, available SNMP card (optional) to UPS remote monitoring function.

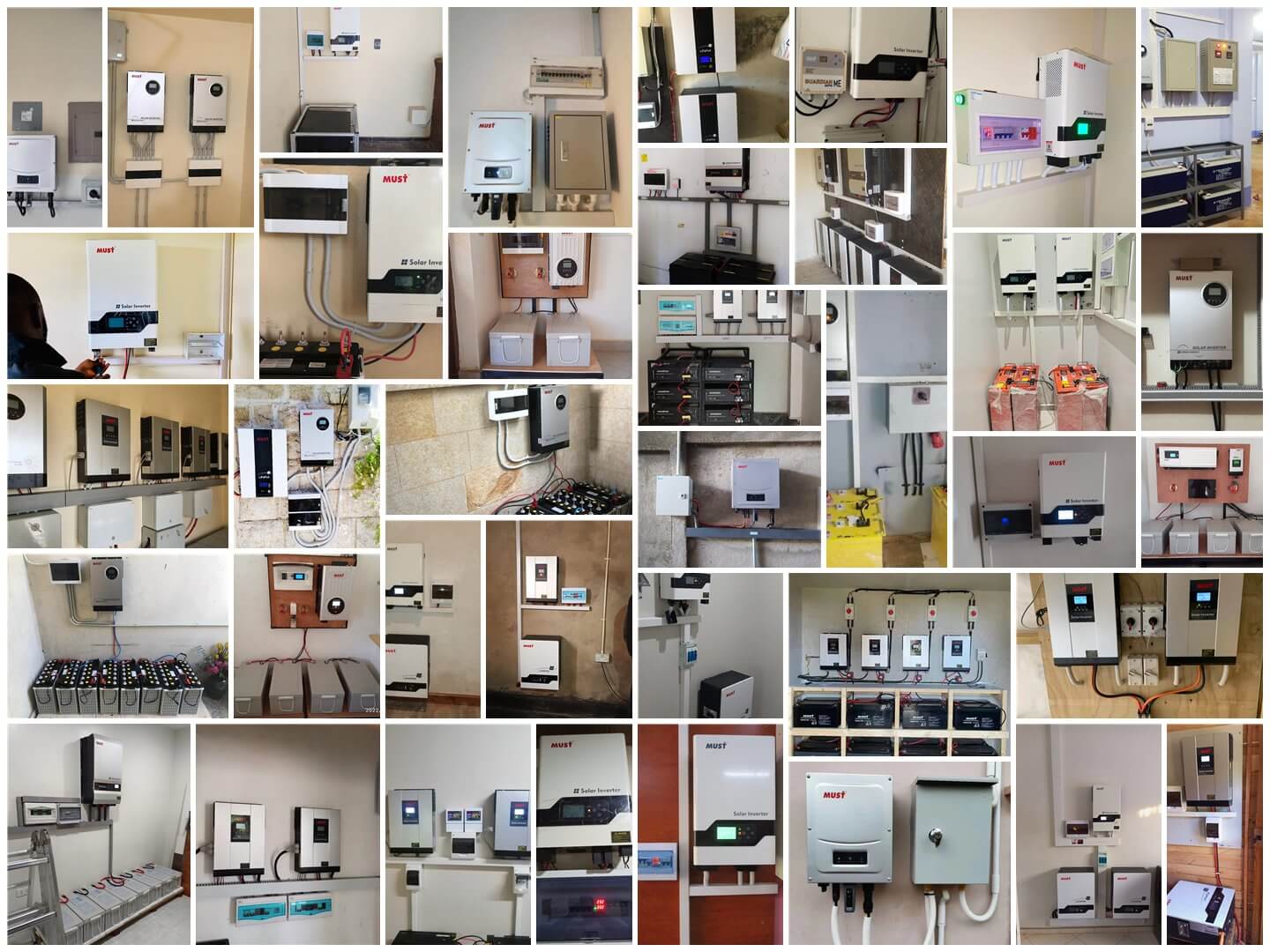

↓↓↓Installation Portfolio————
