Single phase - Online UPS

• With double conversion online design, zero output transfer time.
• Adopt DSP digital control, excellent performance indicators, more steady and reliable.
• Adopt active power factor correction technology (PFC), the input power factor is 1, can reduced the pollution to the grid, to energy saving and reducing system investment cost.
• Output voltage 208Vac/220Vac/230Vac/240Vac can be set.
• Ultra-wide input voltage range , input voltages available 110V instead of turn to battery power.
• With LCD+LED real-time display, UPS operating available for Detection.
• With self-detection function, can detect hidden faults of UPS.
• Cold start by battery without grid Input.
• Input frequency range 40~70Hz, support various fuel generators.
• With AC input over voltage, low voltage protection, output overload protection, short circuit protection, temperature protection, battery low voltage warning protectionand battery overcharge protection.
• Output power factor 1.0 for your option. max efficiency reach 95%, reduce loss of UPS.
• Standard RS232 communication outlet ,connect UPS and computer to realize multifunctional and multi-purpose monitoring and management operations,available SNMP card (optional) to UPS remote monitoring function.
• The split type model can directly replace the entire built-in battery pack, avoiding safety accidents caused by battery replacement.

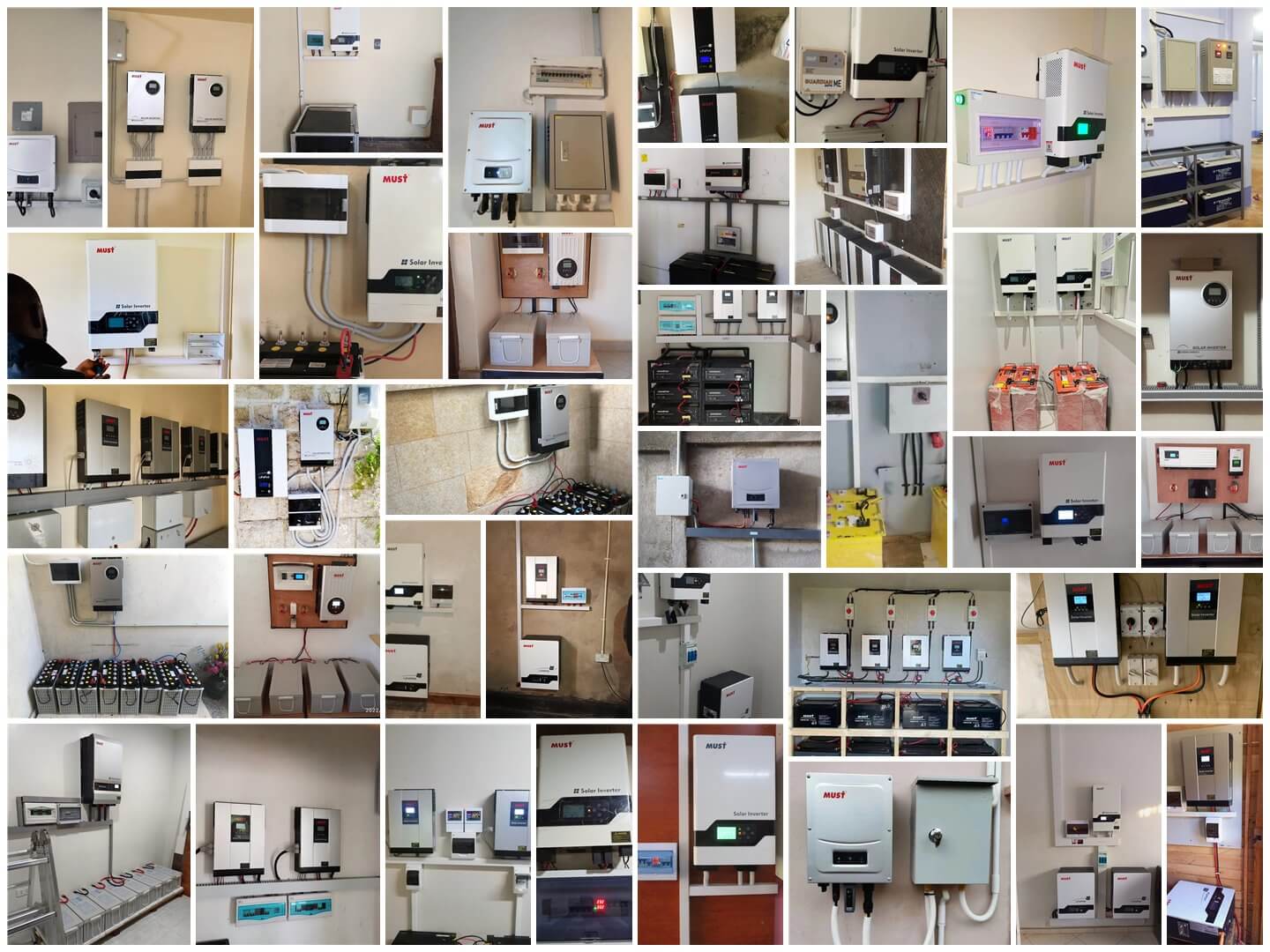

↓↓↓Installation Portfolio————
