VALVE REGULATED GEL BATTERY

Front Access Lead Acid Gel VRLA Battery FCTG Series 12V

As a well renowned front access lead acid battery manufacturer in China, MUST ENERGY offers the widest selection of front access AGM batteries and gel VRLA batteries. The gel technology has numerous superiorities over the equivalent AGM battery range, especially for telecommunication applications. The FCTG type front terminal battery comes with long lasting design life and front access connections for fast, easy installation and maintenance, and is ideally suitable for telecom outdoor equipment, renewable energy systems and other severe environments.

Features:

Get Pricing/Info

Product Features of Industrial Battery:

This stationary battery comes with a superior gel electrolyte where sulfuric acid is evenly mixed with silica fume and acid layering does not exist.
The electrolyte is gel like and immobile, which enables no leakage and uniform reaction of battery plates.
Serving as perfect power supply equipment, the front access lead acid battery is designed with slim shape. Front access terminal connection is convenient for installation and maintenance, and space saving.
Radial type grid design and tight assembly technology enable prominent high rate discharge performance for our gel VRLA battery.
Due to a unique design, the electrolyte volume of this battery can not reduce in use, and it requires no watering during service life.
Special anti-corrosion grid alloy is utilized so that the energy storage device comes with more than 8 years of design life at 25℃.
High purity raw materials ensure super low battery self discharge.
Thanks to the use of gas recombination technology, our industrial battery boasts extremely high seal reaction efficiency and yields no acid mist, thus friendly and pollution-free to the environment.
By means of special design and high reliable sealing technology, the battery is well sealed, thus ensuring definite safety.

Applications of Front Access Lead Acid Battery:

19inch and 23inch power cabinet;
Telecommunication systems including exchange board, microwave station, mobile base station, data center, radio and broadcast station;
Power supply system of private network of LAN;
Signal system and emergency lighting system;
EPS and UPS system.

Other Features:

Voltage covers: 12V
Capacity: From 55/10HR to 190/10HR
Front Access Lead Acid Battery, Gel VRLA Battery mainly for Telecommunication System

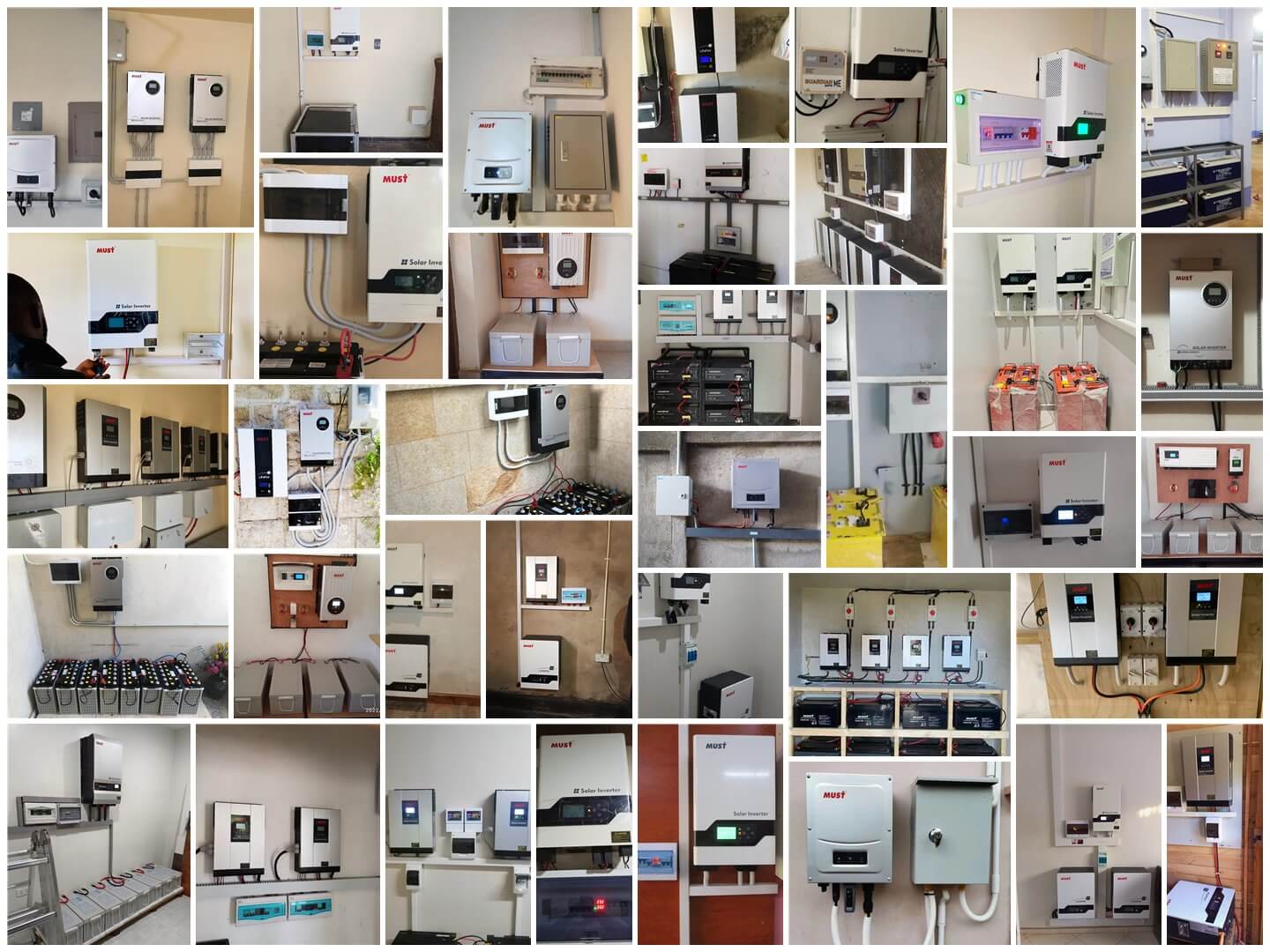

↓↓↓Installation Portfolio————

MUSTENERGY

Visits: 3

Specification

Models	Nominal voltage (V)	Capacity (Ah)	Overall dimensions (mm)				Weight (kg ± 3%)	Terminal	Layout	Bolt
Models	Nominal voltage (V)	Capacity (Ah)	Length	Width	Height	Total height	Weight (kg ± 3%)	Terminal	Layout	Bolt
FCTG12-55	12	55/10HR	277	106	223	223	16.1	T2	C	M6×16
FCTG12-80	12	80/10HR	562	114	188	188	25.1	T3	C	M6×16
FCTG12-100	12	100/10HR	507	110	223	223	29.5	T5	C	M8×16
FCTG12-110	12	105/10HR	394	110	286	286	30.6	T5	C	M8×16
FCTG12-125	12	125/10HR	552	110	239	239	37.6	T5	C	M8×16
FCTG12-150	12	150/10HR	551	110	288	288	44.2	T5	C	M8×16
FCTG12-160	12	160/10HR	551	110	288	288	44.7	T5	C	M8×16
FCTG12-175	12	175/10HR	546	125	316	323.5	53.7	T5	C	M8×16
FCTG12-180	12	180/10HR	560	125	316	316	54.2	T5	C	M8×16
FCTG12-190	12	190/10HR	560	125	316	316	55.5	T5	C	M8×16
