Lead Acid Replacement 12/24V
Lead Acid Replacement 12/24V
This battery comes equipped with a state of the art built-in Battery Management System (BMS). The Humless Lithium-Iron battery is lighter, more compact, and more powerful than traditional lead-acid batteries.
Features:
- 6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost;
- Low maintenance batteries with stable chemistry;
- Battery Management System (BMS) is incorporated against abuse;
- up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
- Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
- Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
- Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
Battery Management System (BMS) is incorporated against abuse.
Better storage
up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.
Quickly recharge
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
CAUTIONS
•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.

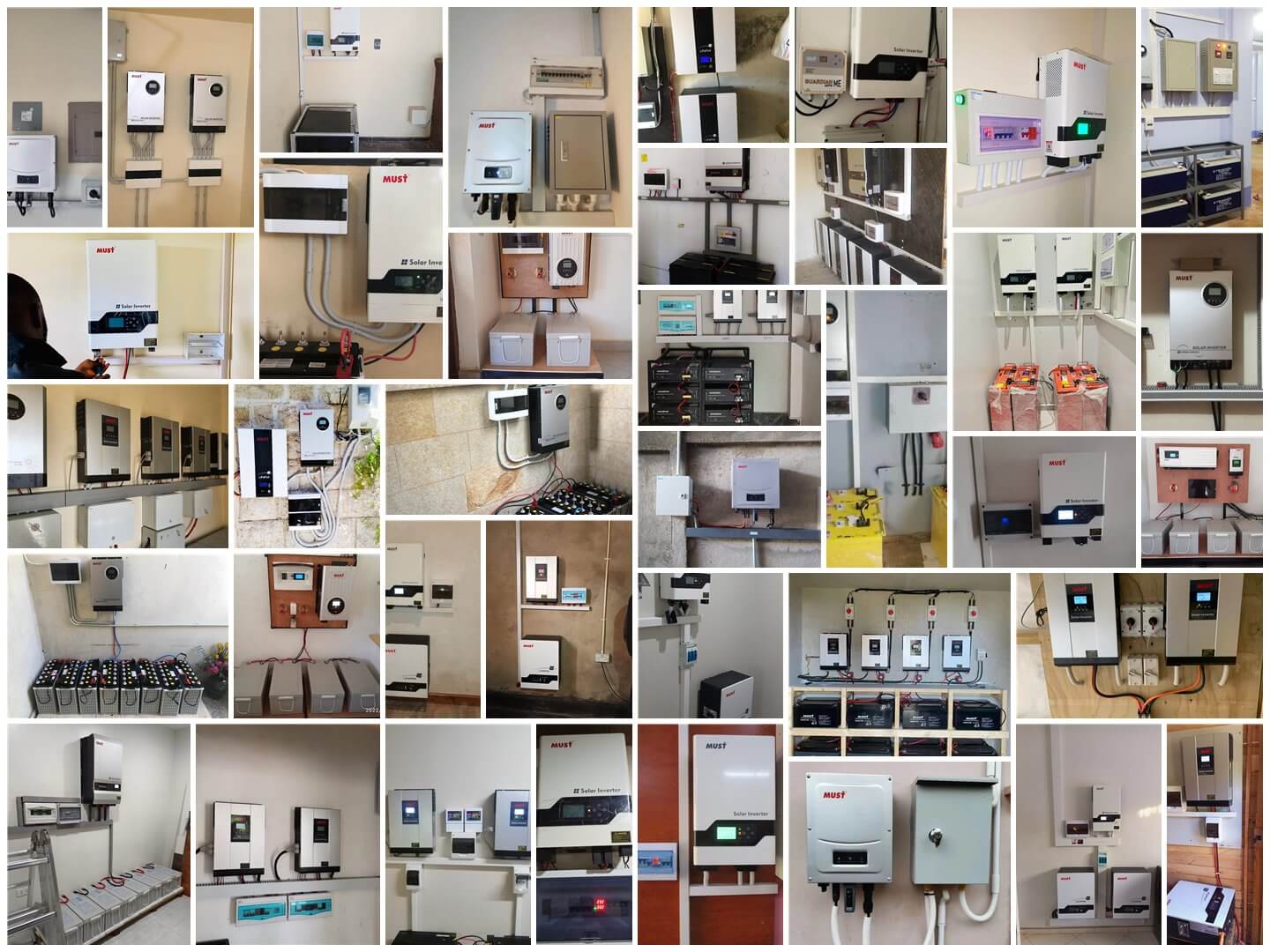

↓↓↓Installation Portfolio————
Visits: 18
| MODEL | LP15-24200 | |
|---|---|---|
| Nominal voltage | 25.6V | |
| Nominal Capacity | 200Ah | |
| Nominal energy | 5120Wh | |
| Life Cycles | 6000 Cycles (25℃, 80% DOD) | |
| Recommended Charge Voltage | 29.2V | |
| Recommended Charge Current | 20.0A | |
| End of discharge voltage | 20.0V | |
| Standard method | Charge | 40.0A |
| Discharge | 100.0A | |
| Maximum continuous current | Charge | 100.0A/ 200.0A |
| Discharge | 100.0A/ 200.0A | |
| BMS Cut-Off Voltage | Charge | <31.2 V (3.9V/Cell) |
| Discharge | >16.0 V (2s) (2.0V/Cell) | |
| Temperature | Charge | -4 ~ 113 ℉ (0 ~ 45℃ ) |
| Discharge | -4 ~ 131 ℉ (-20 ~ 55 ℃ ) | |
| Storage Temperature | 23~95 ℉ (-5~35℃ ) | |
| Shipment voltage | ≥25.6V | |
| Case Material | ABS+PC | |
| Dimension (L x W x H) | 522 x 240 x 218 mm 20.6 x 9.5 x 8.6 | |
| Approx. Weight | 99.2 lbs (45 kg) | |
| Charge retention and capacity recovery capability | Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90 | |
