Lithium Battery Module 24/48V
Lithium Battery Module 24/48V
Our battery module consists of multiple cells connected in a series and/or a parallel, encased in a mechanical structure. The system is modular in design, allowing for it to be easily switched to a different capacity and power as per your demands. The unit can be wall mounted, floor mounted, and server rack mounted.
Features:
- 6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost;
- Low maintenance batteries with stable chemistry;
- Battery Management System (BMS) is incorporated against abuse;
- up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
- Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
- Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
- Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
APPLICATIONS
Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.
Suitable applications include:

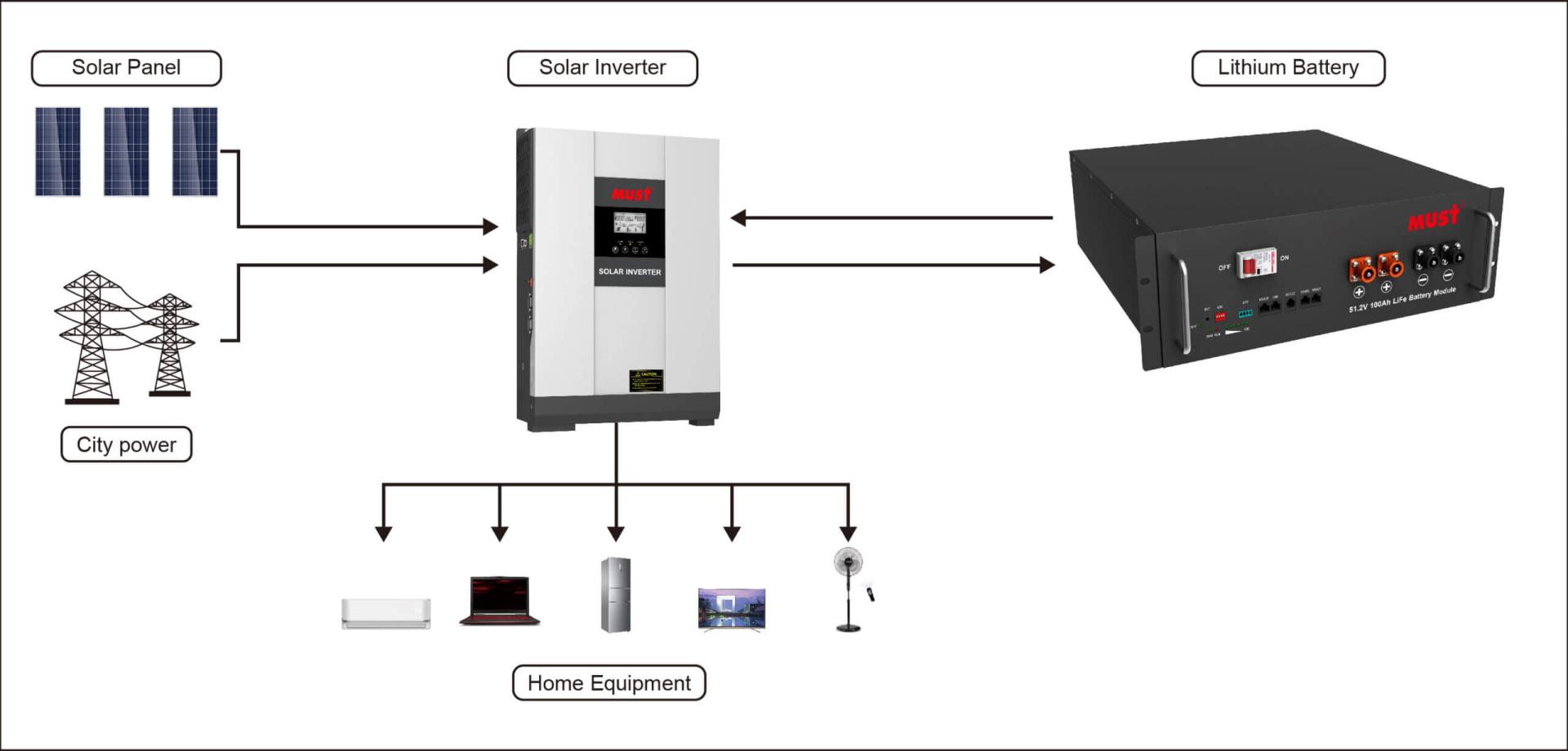

•Solar Storage
•Switching applications and more
•Base transceiver station
•Communication equipments
•Central office
•Telecommunication systems
•Electronic cash registers
•Microprocessor based office machine

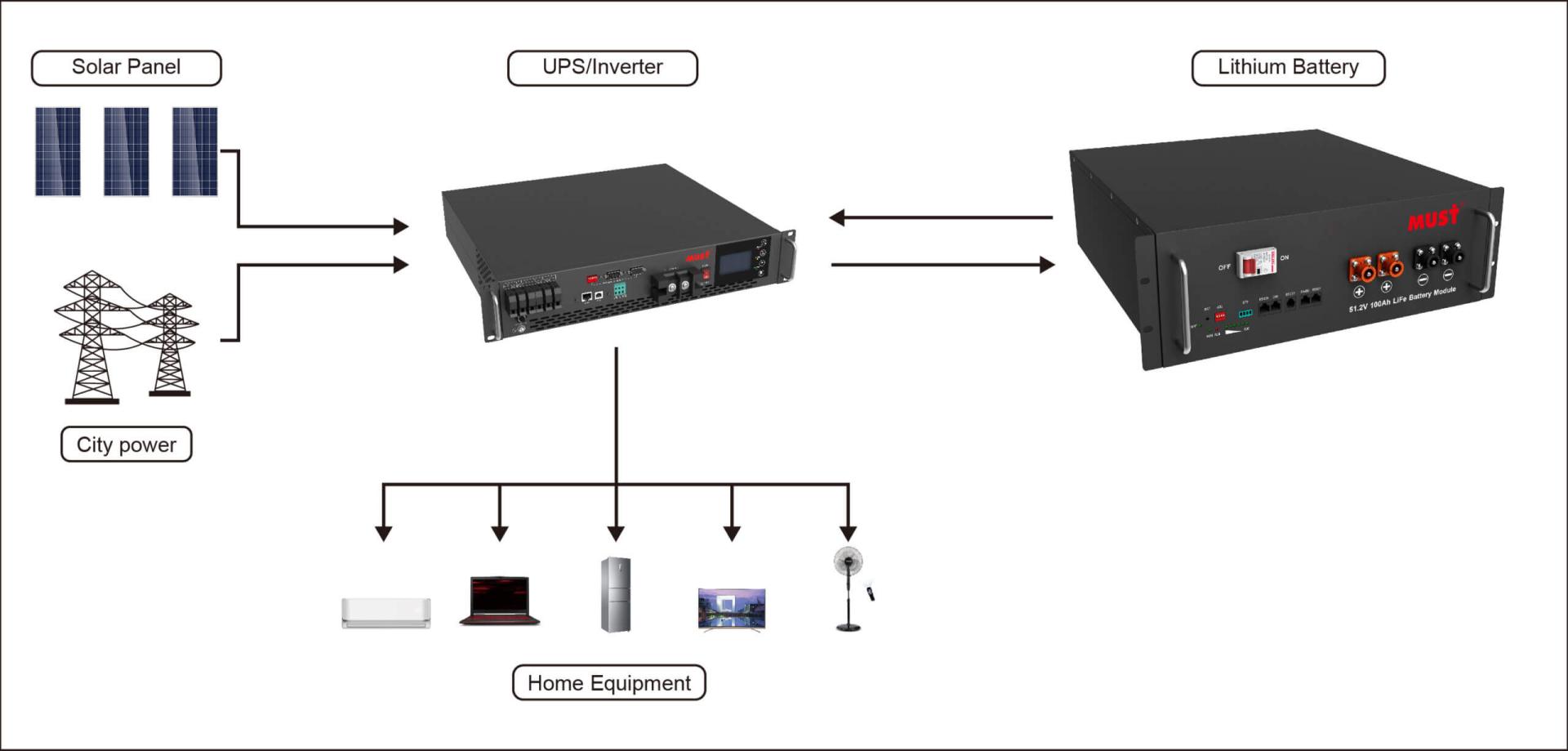

•UPS
FEATURES & BENEFITS
High cycle life
6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost
Longer service life
Low maintenance batteries with stable chemistry.
Built in circuit protection
Battery Management System (BMS) is incorporated against abuse.
Better storage
up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.
Quickly recharge
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
CAUTIONS
•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.

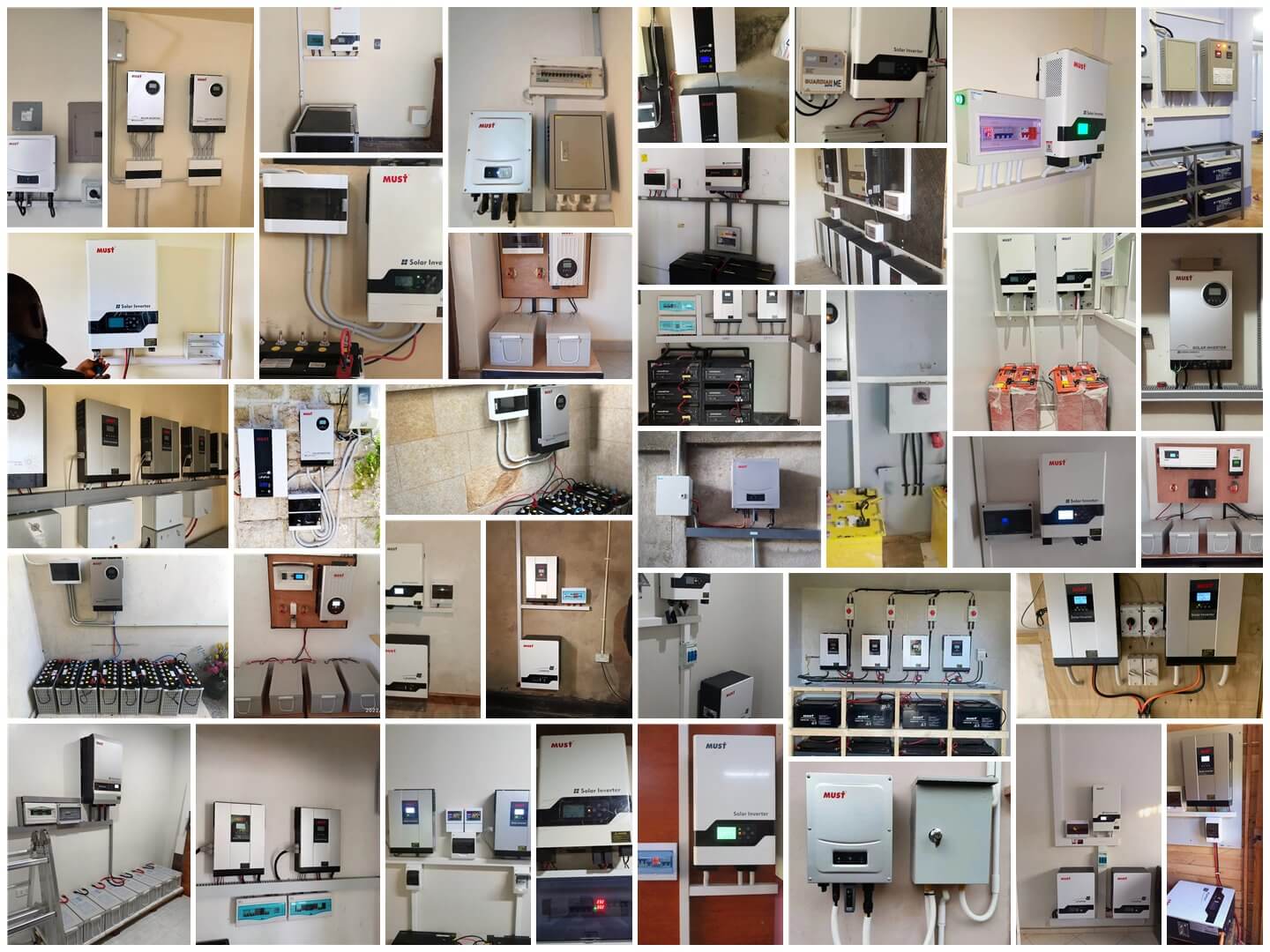

↓↓↓Installation Portfolio————
Visits: 0
| MODEL | LP18-4850 | |
|---|---|---|
| Nominal voltage | 51.2V | |
| Nominal Capacity | 50Ah | |
| Nominal energy | 2560Wh | |
| Life Cycles | 6000 Cycles (25℃, 80% DOD) | |
| Recommended Charge Voltage | 57.6V | |
| Recommended Charge Current | 20.0A | |
| End of discharge voltage | 44.0V | |
| Standard method | Charge | 10.0A |
| Discharge | 25.0A | |
| Maximum continuous current | Charge | 50.0A |
| Discharge | 50.0A | |
| BMS Cut-Off Voltage | Charge | <58.4 V (3.65V/Cell) |
| Discharge | >32.0V (2s) (2.0V/Cell) | |
| Temperature | Charge | -4 ~ 113 ℉ (0 ~ 45℃ ) |
| Discharge | -4 ~ 131 ℉ (-20 ~ 55 ℃ ) | |
| Storage Temperature | 23~95 ℉ (-5~35℃ ) | |
| Shipment voltage | ≥51.2V | |
| Module Parallel | Up to 4 units | |
| Communication | CAN2.0/RS232/RS485 | |
| Case Material | SPPC | |
| Dimension (L x W x H) | 482 x 410 x133 mm 19.0 x 16.1 x 5.2” | |
| Approx. Weight | 55.11 lbs (25 kg) | |
| Charge retention and capacity recovery capability | Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90 | |
