VALVE REGULATED GEL BATTERY

Long Life AGM VRLA Battery GFM Series 2V

Stationary 2V AGM Batteries Serials are mainly big capacity batteries with voltage of 2V. It use advanced micro porous absorbed glass matt separator - minimizes diffusion of oxygen into the separator, reducing float charge current which suppressed the corrosion rate of the positive grid and extends the life of the battery.

Features:

Get Pricing/Info


Product Features of Industrial Battery:
  • MUST ENERGY long life AGM VRLA battery is specially designed on the base of European dwarf form standard structure. It features streamline design and elegant appearance.
  • Thicker and extended plate can ensure self absorption, thus effectively prolonging service life of the storage battery.
  • The valve regulated lead acid battery comes with special design that allows almost no reduction of electrolyte volume in use and no addition of water in service life.
  • Unique corrosion resistant grid alloy plus special lead paste formula enables our long life AGM battery to boast outstanding recovery capability when over discharging as well longer float charge service life.
  • High purity raw materials assure this type of power source ultra low self discharge.
  • Gas recombination technology is adopted so that the battery has extremely high seal reaction efficiency and separates out no acid mist, hence generating no pollution to the environment.



Applications of Long Life AGM VRLA Battery:

Through persistent efforts, MUST ENERGY, the China-based sealed lead acid battery supplier, has brought a wide range of long life AGM VRLA batteries to all kinds of fields. Typical applications are as follows.

  • Telecommunication systems including exchange board, microwave station, mobile base station, data center, radio and broadcast station;
  • Power plant and power transmission system;
  • Solar energy and wind turbine system;
  • Signal system and emergency lighting system;
  • EPS and UPS systems (Known as UPS battery).



Other Features:
  • Voltage covers: 2V
  • Capacity: From 200/10HR to 3000/10HR
  • Long Life AGM VRLA Battery, Valve Regulated Lead Acid Battery

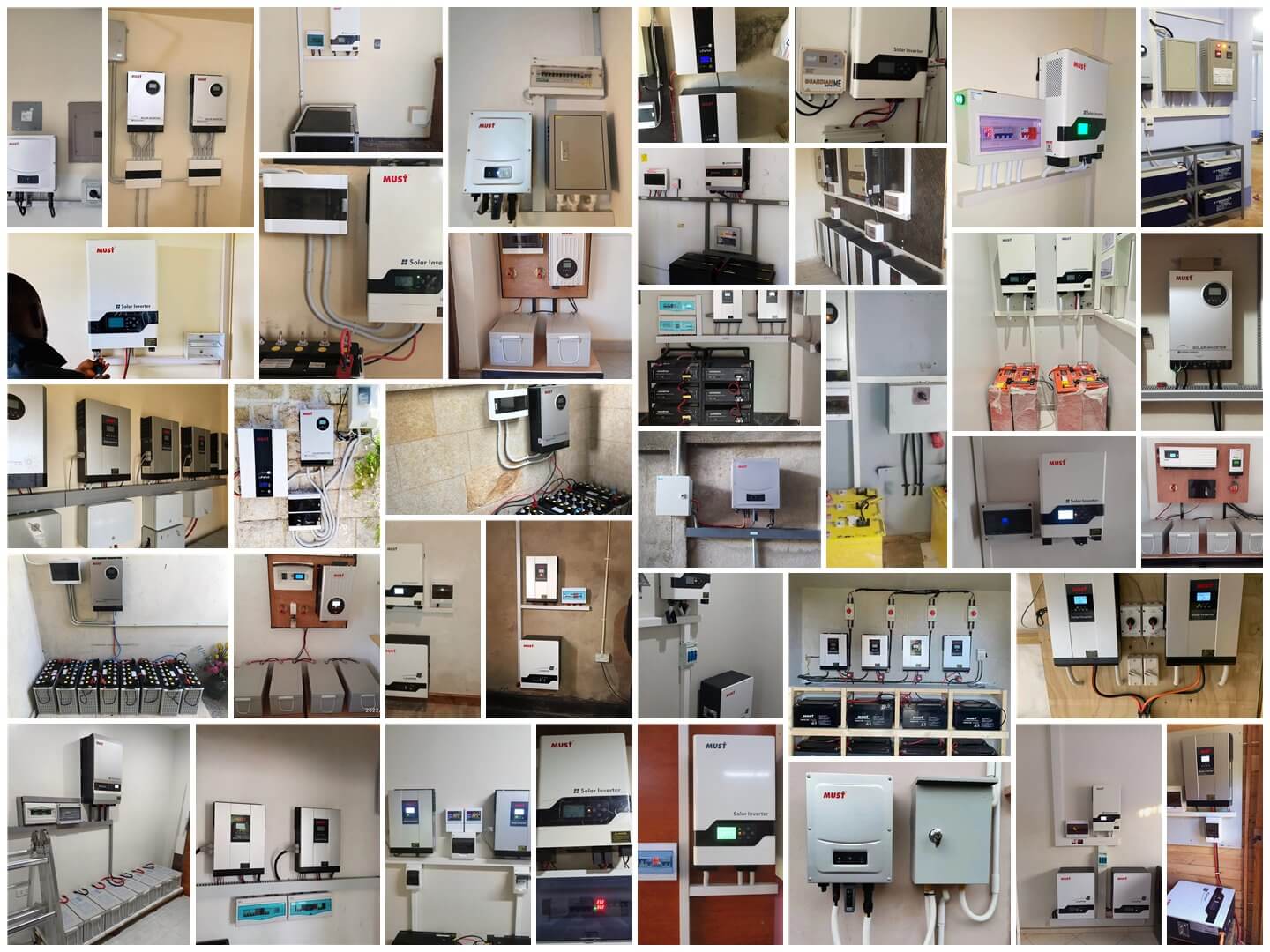

↓↓↓Installation Portfolio————

MUSTENERGY

Visits: 2

Specification

Models Nominal voltage (V) Capacity (Ah) Overall dimensions (mm) Weight (kg ± 3%) Terminal Layout Bolt
Length Width Height Overall height
GFM-200 2 200/10HR 173 111 329 365 13.3 T5 G M8×16
GFM-300 2 300/10HR 171 151 330 365 18.5 T5 G M8×16
GFM-350 2 350/10HR 171 151 330 365 20.5 T5 G M8×16
GFM-400 2 400/10HR 211 176 329 367 26.1 T5 H M8×16
GFM-425 2 425/10HR 211 176 329 367 26.8 T5 H M8×16
GFM-500 2 500/10HR 241 171 349 368 31.0 T5 H M8×16
GFM-600 2 600/10HR 301 175 331 366 37.7 T5 H M8×16
GFM-800 2 800/10HR 410 176 330 365 51.6 T5 I M8×16
GFM-1000 2 1000/10HR 475 175 328 365 62.0 T5 I M8×16
GFM-1200 2 1200/10HR 475 175 328 365 68.5 T5 I M8×16
GFM-1500 2 1500/10HR 401 351 342 378 96.5 T5 J M8×16
GFM-2000 2 2000/10HR 491 351 343 383 130.0 T5 K M8×16
GFM-2500 2 2500/10HR 712 353 341 382 180.0 T5 K M8×16
GFM-3000 2 3000/10HR 712 353 341 382 190.0 T5 K M8×16
