VALVE REGULATED GEL BATTERY

Sealed Lead Acid AGM Battery FC Series 12V

Product Features of Industrial Battery: Maintenance-Free Operation : Absorbent glass mat (AGM) technology ensures superior performance and maintenance free operation. Due to such unique design, the electrolyte volume of this sealed lead acid battery will hardly reduce during use. And, watering is completely avoided. Excellent Discharge Performance : This maintenance free battery, ideally serving as UPS battery,...

Features:

Get Pricing/Info

Product Features of Industrial Battery:

Maintenance-Free Operation : Absorbent glass mat (AGM) technology ensures superior performance and maintenance free operation. Due to such unique design, the electrolyte volume of this sealed lead acid battery will hardly reduce during use. And, watering is completely avoided.
Excellent Discharge Performance : This maintenance free battery, ideally serving as UPS battery, motive power battery, telecom battery, etc. features sealed assembly technology, thus ensuring excellent high rate discharge performance.
Low Self Discharge : AGM battery for uninterruptible power supply is fully manufactured from high purity raw materials, hence keeping extremely low self discharge.
Long Service Life : Thanks to unique corrosion resistant grid alloy, this unrivaled industrial battery comes with quite long service life.
Environment Friendliness : This valve regulated lead acid battery, i.e. VRLA battery, boasts gas recombination technology. As a result, it has extremely high seal reaction efficiency and thereby no acid fume will be separated out.
Safety and Reliability : Unique design and highly dependable sealing technology make it sure that the AGM battery is well sealed, thus ensuring safety and reliability in use.

Applications of Sealed Lead Acid AGM Battery:

EPS and UPS system;
Power source for portable devices or tools;
Signal system, emergency lighting system, security and protection system;
Power equipment such as electric power tool, toy, portable dust collector and unmanned robot;
Telecommunication equipment such as automobile telephone, mobile telephone, portable radio transmitter and portable terminal.

Other Features:

Voltage covers: 12V
Capacity: From 4/20HR to 250/10HR
Sealed Lead Acid Battery, AGM Battery mainly for Uninterruptible Power Supply

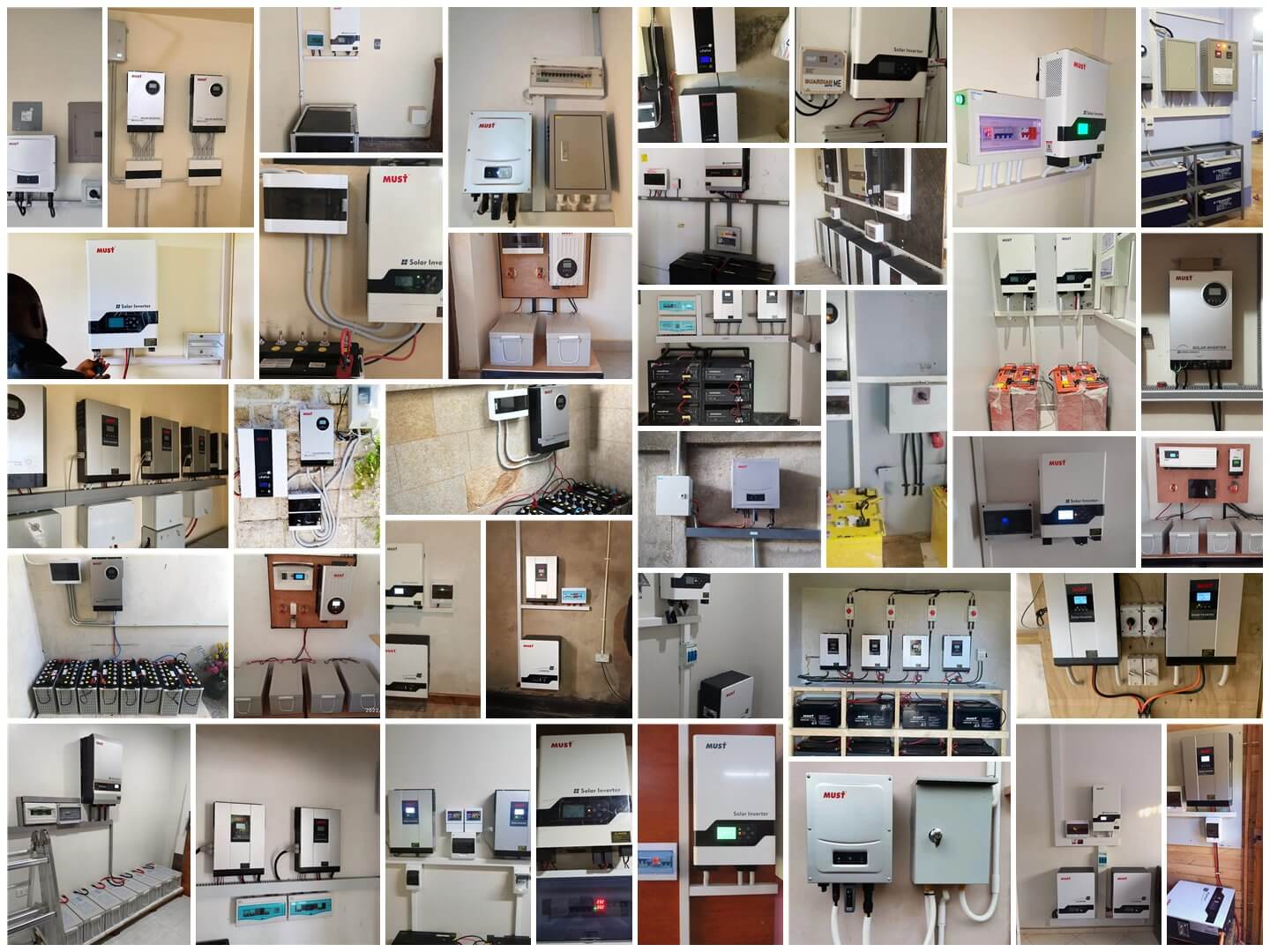

↓↓↓Installation Portfolio————

MUSTENERGY

Visits: 0

Specification

Models	Nominal voltage (V)	Capacity (Ah)	Overall dimensions (mm)				Weight (kg ± 3%)	Terminal	Layout	Bolt
Models	Nominal voltage (V)	Capacity (Ah)	Length	Width	Height	Overall height	Weight (kg ± 3%)	Terminal	Layout	Bolt
FC12-4	12	4/20HR	90	70	101	107	1.35	F1/F2	A	/
FC12-4.5	12	4.5/20HR	90	70	101	107	1.48	F1/F2	A	/
FC12-5	12	5/20HR	90	70	101	107	1.58	F1/F2	A	/
FC12-6.2	12	6.2/20HR	151	65	94	100	1.9	F1/F2	D	/
FC12-7.0	12	7.0/20HR	151	65	94	100	2.03	F1/F2	D	/
FC12-7.2	12	7.2/20HR	151	65	94	100	2.13	F1/F2	D	/
FC12-7.5	12	7.5/20HR	151	65	94	100	2.2	F1/F2	D	/
FC12-9	12	8.5/20HR	151	65	94	100	2.4	F1/F2	D	/
FC12-10	12	10/20HR	152	99	96	102	3.15	F1/F2	D	/
FC12-12	12	12/20HR	152	99	96	102	3.38	F1/F2	D	/
FC12-14.5	12	15/20HR	152	99	96	102	3.8	F1/F2	D	/
FC12-18	12	18/20HR	181	77	167	167	5.18	L1	B	M5×16
FC12-24	12	24/10HR	165	126	174	174	7.7	T3	B	M6×12
FC12-26	12	26/10HR	166	175	126	126	8.3	T2	B	M6×16
FC12-33	12	33/10HR	196	130	155	167	10	T3	A	M6×16
FC12-38	12	38/10HR	197	166	174	174	12.3	T3	B	M6×16
FC12-42	12	42/10HR	198	166	174	174	12.9	T3	B	M6×16
FC12-55	12	55/10HR	229	138	208	212	17.2	T3	A	M6×16
FC12-65	12	65/10HR	350	167	178	178	20.2	T3	B	M6×16
FC12-70	12	70/10HR	260	169	211	215	21.7	T3	A	M6×16
FC12-75	12	75/10HR	260	169	211	215	22	T3	A	M6×16
FC12-80	12	80/10HR	331	174	214	219	24.8	T4	B	M8×16
FC12-90	12	90/10HR	331	174	214	219	27.8	T4	B	M8×16
FC12-95	12	95/10HR	407	174	210	233	29.5	T5	A	M8×16
FC12-100	12	100/10HR	331	174	214	219	30.5	T4	B	M8×16
FC12-120	12	120/10HR	407	174	210	233	34.2	T5	A	M8×16
FC12-145	12	145/20HR	532	206	212	217	41.4	T4	C	M8×16
FC12-150	12	150/10HR	484	171	241	241	43.5	T4	A	M8×16
FC12-160	12	160/10HR	532	206	216	222	48.3	T4	C	M8×16
FC12-180	12	180/10HR	522	240	219	224	55.3	T5	C	M8×16
FC12-200	12	200/10HR	522	240	219	224	58.2	T5	C	M8×16
FC12-220	12	220/10HR	520	269	203	209	68	T5	C	M8×16
FC12-250	12	250/10HR	520	268	220	225	70	T5	C	M8×16

Lead Acid batteries are designed with AGM technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the fields of UPS, Emergency Lighting System.
